Transparent LED Displays
Product information
Starts from Contact for Quote
Description
Innovative transparent LED display technology for unique architectural applications
Highlights
- 70% Transparency
- Lightweight Design
- Versatile Installation
Details
Transparent LED display with up to 70% transparency
See-Through Innovation
Revolutionary transparent LED technology
70% Transparency
Lightweight Design
Versatile Installation
Technical Specifications
The product features are precision crafted to deliver exceptional performance and aesthetics.
- Model
- Transparent LED Displays
- Pixel Pitches
- P2.8*5.6, P3.9*7.8

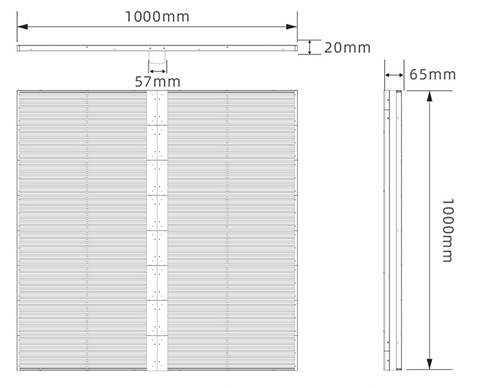

- Cabinet Dimension (mm)
- 1000 x 1000 x 20, 970 x 870 x 15
- Material
- Aluminum
- Pixel Configuration
- 1R1G1B Tri-in-one SMD LED
- LED Chip Type
- Samsung: 1921
- LED Mounting Method
- Front mounted and front emitting
- Brightness (cd/m²)
- 5000
- Transparency (%)
- 20 (P2.8*5.6), 70 (P3.9*7.8)
- Control Method
- Synchronous/Asynchronous
- Refresh Rate (Hz)
- 1920Hz/3840Hz
- Maintenance
- Front and rear maintenance
- Operating Ambient Temperature (°C)
- -20℃-40℃
- Ingress Protection
- IP30
- Average Lifespan
- MTBF≥10000 hours
- Power Input
- AC110-240V, 50/60Hz
- Features
- Clarity Transformed with Transparency
- Environment
- Indoor
